The performance of a capacitor greatly depends on the environment in which it is used. Exposing a standard capacitor to extreme conditions can cause it to fail, overheat, or even burn. For semi-critical and critical applications, it is necessary to use high reliability components. Fused tantalum capacitors and open mode multilayer ceramic capacitors (MLCCs) are fail-safe components that are suitable for use in harsh environments.
Fail Safe Tantalum Chip Capacitors
The impressive stability and high reliability of solid tantalum capacitors make them a suitable choice for a broad spectrum of applications. They are widely used in circuits that demand components with a long service life and high reliability. In addition, these capacitors are compact in size and have smooth frequency response. Typical high reliability applications of tantalum capacitors include aerospace systems; medical systems such as defibrillators, drug delivery systems, and pacemakers; and filtering circuits. Although tantalum capacitors have high reliability and stability, they are susceptible to high current surges and high voltage. Overstressing solid tantalum capacitors can cause premature failures. Such failures can cause overheating depending on the available energy. Typical conditions that can overstress a tantalum capacitor include thermal overload, inductive transients, excessive voltage, and reverse voltage.
Fused Tantalum Capacitors
Fused or fail-open capacitors are used in circuits where components are likely to be exposed to overstressing, where many capacitors are connected in parallel, or in circuits where capacitors are charged and/or discharged through low impedances. Fail safe capacitors are widely used in power suppliers and main frame computers.
Adding a fuse to a tantalum capacitor helps to enhance its effective reliability. This technology involves adding a fuse element in series with the tantalum capacitor. The capacitor/fuse module switches to high resistance mode, usually above 10MΩ, when the current limit of the fuse is exceeded. The open circuit condition helps to minimize damage to the circuit. Although the high resistance mode can cause detectable performance degradation, it cannot cause a total circuit loss. A fuse element has inherent resistance, and adding it to a tantalum capacitor increases the equivalent series resistance (ESR). This means that the capacitor/fuse assembly has a higher ESR as compared to a standalone capacitor.
Methods of making a capacitor/fuse module
In a capacitor/fuse module, the fuse is placed in such a way that it is in series with the capacitor. Using a fusible link is one of the common methods of making a capacitor/fuse assembly. When excessive current flows through the assembly, it initiates an exothermic reaction that opens the current path. This type of fuse is referred to as electrically activated fuse, and the fusible link is made of two or more metallic elements. Another method of making a fused tantalum capacitor entails using a low melting point wire. The wire melts when excessive current flows though the module. Unlike electrically activated fuses, no exothermic reaction is required to open the thermally activated fuse. Thermal sensitivity, electrical resistances, and speed of operation are some of the key factors that should be considered when manufacturing wire fuses.
Manufacturing a wire fuse involves many manufacturing steps, and the method is not well compatible with most pick-and-place automated assembly equipment. Using ready-made thin-film fuses is, therefore, a better method of producing capacitor/fuse modules. This approach allows better control of the physical and electrical characteristics of the capacitor/fuse assembly, and it is mostly used in the manufacturing of today’s surface mount circuit boards. It yields ultra-miniature assemblies with predictable and precise fusing characteristics. In addition, thin-film construction yields chip-style packages that are easy to mount using modern automated assembly equipment.
The most important ratings to consider when selecting a fuse for a capacitor/fuse module are current interrupt rating and operating voltage rating. The two ratings determine the inrush currents and surges that a fuse can withstand, and exceeding them can cause it to melt or rupture. The current squared seconds - a standardized unit that factors the magnitude, duration, and shape of current pulses - is commonly used for categorizing fuses. This value of a fuse determines when a fuse will open, and it is one of the key parameters to consider when selecting a fuse for a tantalum capacitor. Apart from voltage rating, current interrupt rating, and current squared seconds values, it is also important to consider pulse de-rating , thermal de-rating, and time-current characteristics when selecting a fuse.
Fail Safe Multilayer Ceramic Capacitors (MLCCs)
Board flexure can cause both active and passive electronic components to fail. Since multilayer ceramic capacitors (MLCCs) are highly susceptible to mechanical cracking due to their brittle nature, it is necessary for circuit board manufacturers to ensure that their board handling techniques do not expose boards to excessive bending. Some of the processes that can expose boards to excessive bending include mounting in assembling and depanelization. Use of unsupported input/output edge connectors and pick-and-place equipment can also cause excessive bending.
The main causes of mechanical damage to MLCCs can be broadly classified into impact cracking and flex cracking. Impact cracking occurs during the process of placing a component onto a PCB while flex cracking occurs mainly due to excessive board flexure. Although it is possible to minimize board flexure, it is difficult to fully eliminate it. Open mode capacitors are designed to withstand forces that cause mechanical cracks, and they are suitable for applications that demand high-reliability multilayer ceramic capacitors.
Open Mode Design MLCCs
Board flexure cracks are a major cause of short circuits and component failure in multilayer ceramic capacitors. Open mode multilayer ceramic capacitors have high tolerance to board flexure cracks, and this makes them a suitable choice for applications that demand protected components. The electrodes of these reduced risk MLCCs are uniquely designed to compensate for the typical crack path caused by excessive PCB bending during manufacturing or assembly.

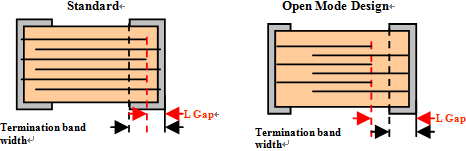

Excessive bending of a printed circuit board transfers stress to the soldered components. A ceramic capacitor cracks if its breaking strength is less than the applied stress. In some cases, the stress can cause displacement of the component. Such a displacement can cause counter electrodes to come into contact thereby resulting in a short circuit. The open mode design reduces possibility of a short circuit by reducing the active area in a multilayer ceramic capacitor. Shortening of the electrode layers increases the distance between the counter electrodes and the potential crack. On the flip side, this design compromises the capacitance of a multilayer ceramic capacitor.
Standard MLCCs have no crack protection and they are normally used for non-critical applications. Open mode design provides basic crack protection, and open mode MLCCs are usually used for semi-critical applications. These capacitors can withstand up to 2mm of board flexure. Flexible termination provides a higher level of crack protection.
These capacitors can withstand an intermediate level of thermal stress cracks, board flex stress, and damage caused by pick-and-place equipment, and they are suitable for critical applications. For safety critical applications, a high level of protection is required. This level of protection is usually achieved by combining a fail-safe electrode design, open mode design or floating electrode design, and flexible termination. This flex mitigation technology provides fail-open condition and it is suitable for protecting MLCCs from thermal stress cracks, board flex stress, and damage caused by pick-and-place assembly equipment. In addition, this level of protection enables a multilayer ceramic capacitor to withstand up to 5mm of board flexure.
